GAPTEQ supports the authentication of your GAPTEQ users via Azure Active Directory (Azure AD), thereby reducing your administrative workload in user management. You can make the settings conveniently via the GAPTEQ portal.
In this article you will read the following content:
Set up AzureAD in the GAPTEQ-Portal
1. Set up AzureAD in the GAPTEQ-Portal
- To do this, go to the GAPTEQ-Portal and open the corresponding Subscription

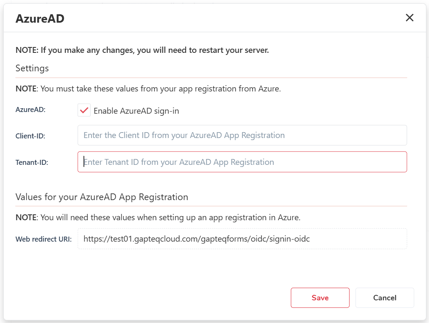

- Under the Server tab, click the “Set up AzureAD” button - the following dialog box opens
- First set the checkbox “Activate AzureAD login”
Note!
You can obtain the Client-ID and the Tenant-ID from the Microsoft Azure-Portal (see 2.).
First save the “Web redirect URI” to the clipboard - you must store this in the Azure-Portal in the next step.
2. Settings in Azure-Portal
2.1 App registration
The use of Azure AD for an application requires an app registration.
- To do this, go to your Azure portal and create a new app registration as follows:
- Go to the “App registrations” resource group and click on “New registration”.
- For example, enter “GAPTEQ-TEST” as the name (→ the name is not relevant for the configuration, you can also enter a different name).
- On the “Supported account types” tab, select “Only accounts from in this organization directory (...)”.
Note!
For “Redirect URI (optional)”, select “Web” under “Select platform”
In the input field next to it, enter the web redirection URI previously copied to the clipboard from the GAPTEQ-Portal!
„https://www.companyname.de/gapteqforms/oidc/signin-oidc“ or
„https://localhost/gapteqforms/oidc/signin-oidc“.
Attention! Enter everything here in lower case!
- Click on “Register” to complete the app registration.
Tip! Two details are important here, which are best copied directly into a text editor: Application ID (client) and Directory ID (client). These two values are later relevant for the configuration of GAPTEQ.
2.2 Token configuration
The token configuration specifies what an authenticated user of the application is allowed to read from the Azure AD. The following settings are required for GAPTEQ.
- To do this, click on “Token configuration” in the app registration overview on the left-hand side.
Add optional entitlement
- Click on “Add optional entitlement”. A window opens in the right-hand side area, where you select the value “ID” for “Token type”.
- A list appears - select the values “email”, “family_name”, “given_name”, “verfied_primary_email”, “verified_secondary_email” and click on “Add”.
- Another window will appear. Check the box “Activate Microsoft Graph authorization (...)” and click on “Add”.
Adding a group entitlement
- To add a group entitlement, click on “Add group entitlement”.
- A window opens on the right-hand side. Select “Security groups” and click on “Add”.
2.3 API authorizations
The API authorization defines what a client application is allowed to read from the Azure AD. The following settings are required so that the GAPTEQ Designer can read users and user groups.
- To do this, go to “Authentication” in the app registration overview on the left-hand side.
- Click on “Add platform”. A window appears in the right-hand area. Select “Mobile device and desktop applications".
- Another window appears, select: “https://login.microsoftonline.com/common/oauth2/nativeclient” and click on “Add”.
Set Token-ID
- Once you have added the platform, you can set the ID token under the “Authentication” tab by checking the checkbox "ID tokens (used for implicit and hybrid flows)".
Set API authorizations
Click on “API permissions” in the left-hand area of the app registration overview. You will already see a list of API permissions. To add permissions, proceed as follows:
- Click on “Add permission”, a window will appear in the right-hand area, select “Microsoft Graph” there.
- In the following window, select “Delegated permissions”, a grouped list appears at the bottom.
- Select the fields “email”, “openid” and “profile” in the list in “OpenId authorizations”. Further down in the list in the “Group” group, select “Group.Read.All”. Again further down in the list in the “User” group, select “User.Read” and “User.Read.All”.
- Then click on “Add authorization”. You will then see a list of all authorizations.
Tip! Administrator consent is required for some entries. You can see this in the “Status” column. To grant administrator consent, click on “Grant administrator consent for (...)”. In the following question, click on “Yes, add further granted authorizations to configured authorizations” and click on “Save and continue”. Another prompt appears, confirm it.
